DBR/Y-600, 100pc. Box

Part # 20235

DryConn Direct Bury 600 Silicone Tube with Red/Yellow Gorilla Nut: Waterproof your outdoor splices with the DryConn DBR and Y-600. The Red and Yellow More...

WHERE TO BUY

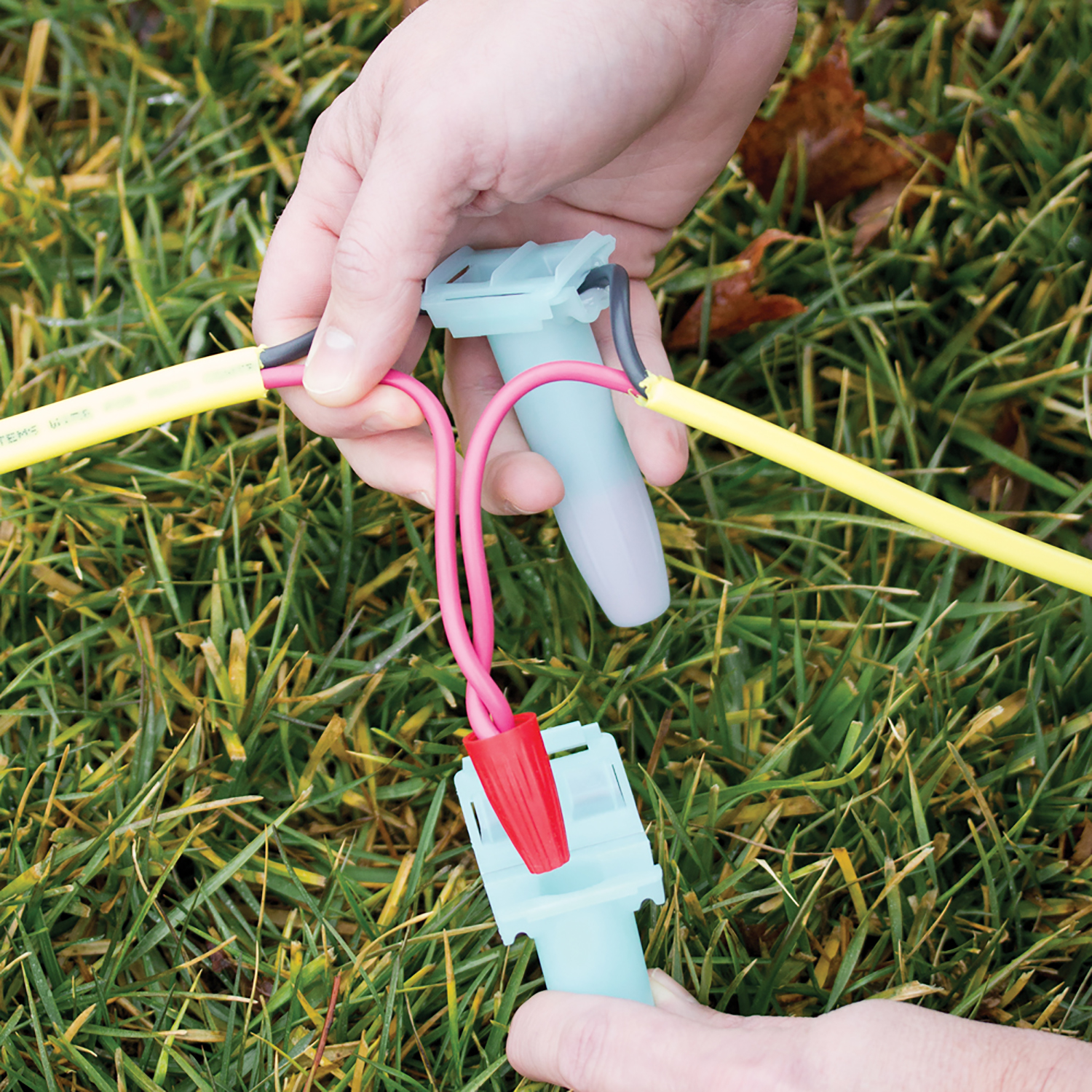

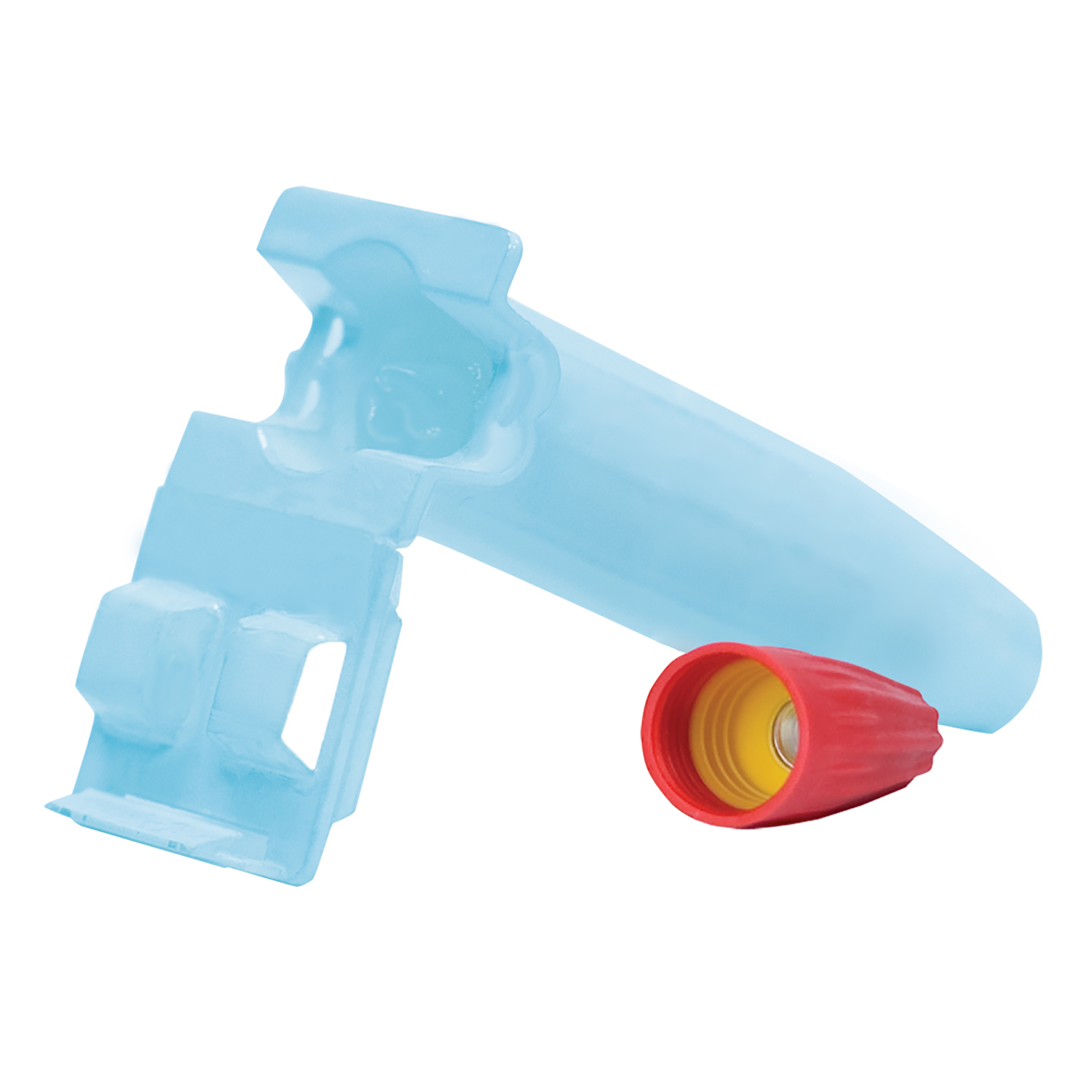

DryConn Direct Bury 600 Silicone Tube with Red/Yellow Gorilla Nut: Waterproof your outdoor splices with the DryConn DBR and Y-600. The Red and Yellow Gorilla Nut allows you to make connections with a cushion grip-wire connector that protects numb and painful fingertips. Then, waterproof your splice with a dielectric silicone filled tube. The tube features a patent pending snap-fit lid for maximum strain relief on splices. The DryConn DBR and Y-600 is UL listed for waterproof and direct bury connections.

  • UL Listed and 600V Rated
  • Waterproof and corrosion proof
  • Patented snap fit lid provides strain relief
  • UV and impact resistant
  • Max. Voltage: 600V max. building wire (1000V max. signs or luminaries)
  • Wire Type: Copper/Copper
  • Wire Range: Min #22/Max #8
  • Temperature Rating: -105 deg C (221 deg F)
  • Silicone Sealant Temperature: -45 deg F to 400 deg F
  • UL Designation: GT2

RoHS Compliant (Restriction of Hazardous Substances Directive) ° Contact Compliance
Each in Package Height (in) * 7.5
Each in Package Width (in) * 10.5
Each in Package Length/Depth (in) * 10.5
Each in Package Weight (lbs) * 7.123
Inner Pack Weight (lbs) * 7.123
