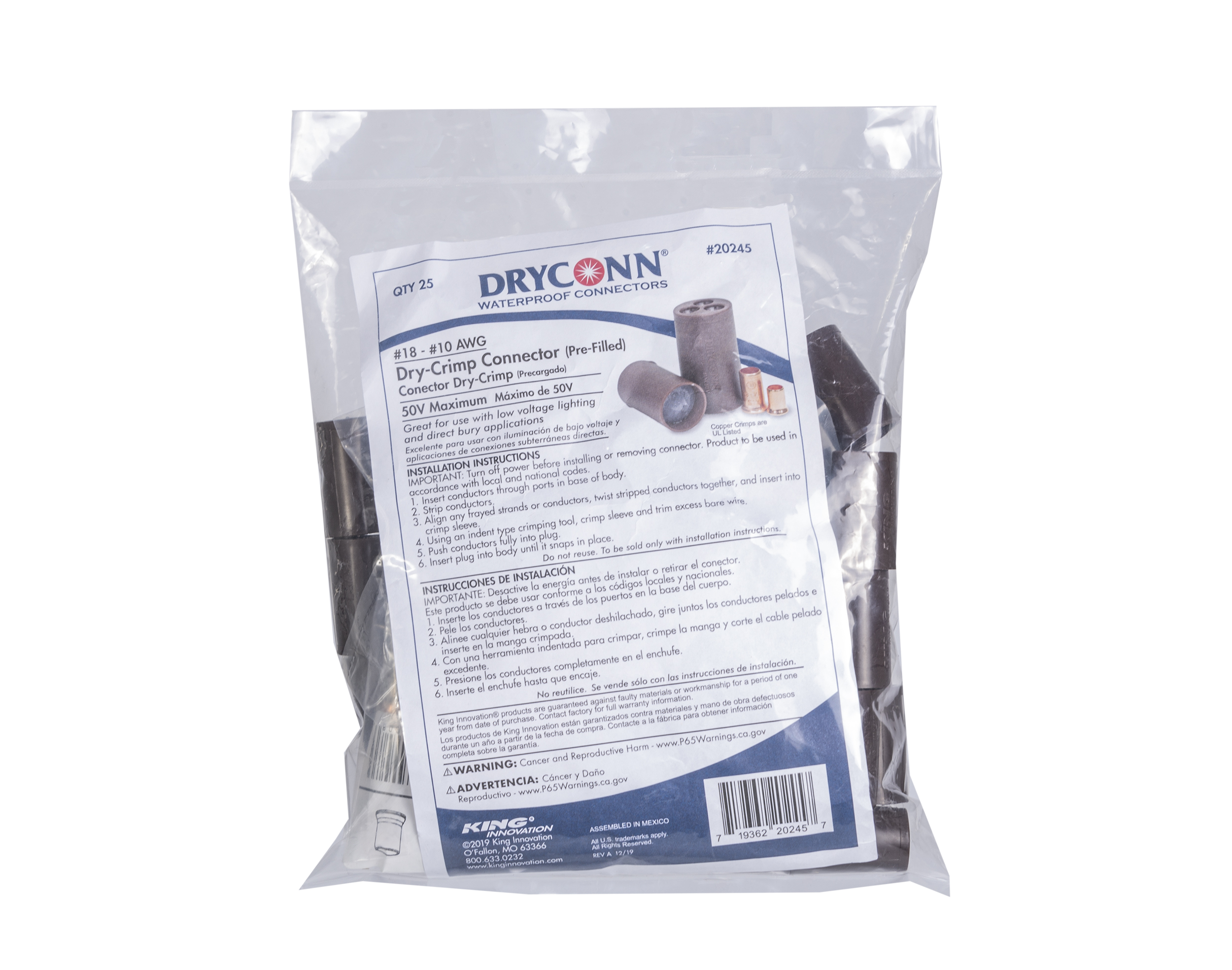

DryCrimp (pre-filled), Contents Include 25 pre-filled housings, 25 small and 25 large copper crimp sleeves
Part # 20245
DryConn Dry-Crimp Filled Connector: DryConn Dry-Crimp wire connectors are crimp-style wire connectors perfect for use in low voltage lighting More...
WHERE TO BUY
DryConn Dry-Crimp Filled Connector: DryConn Dry-Crimp wire connectors are crimp-style wire connectors perfect for use in low voltage lighting applications. The copper crimp makes a secure connection, while the silicone filled housing protects splices from harsh outdoor elements. Designed and manufactured in the USA, you can trust Dry-Crimp connectors for quality, long lasting splices.

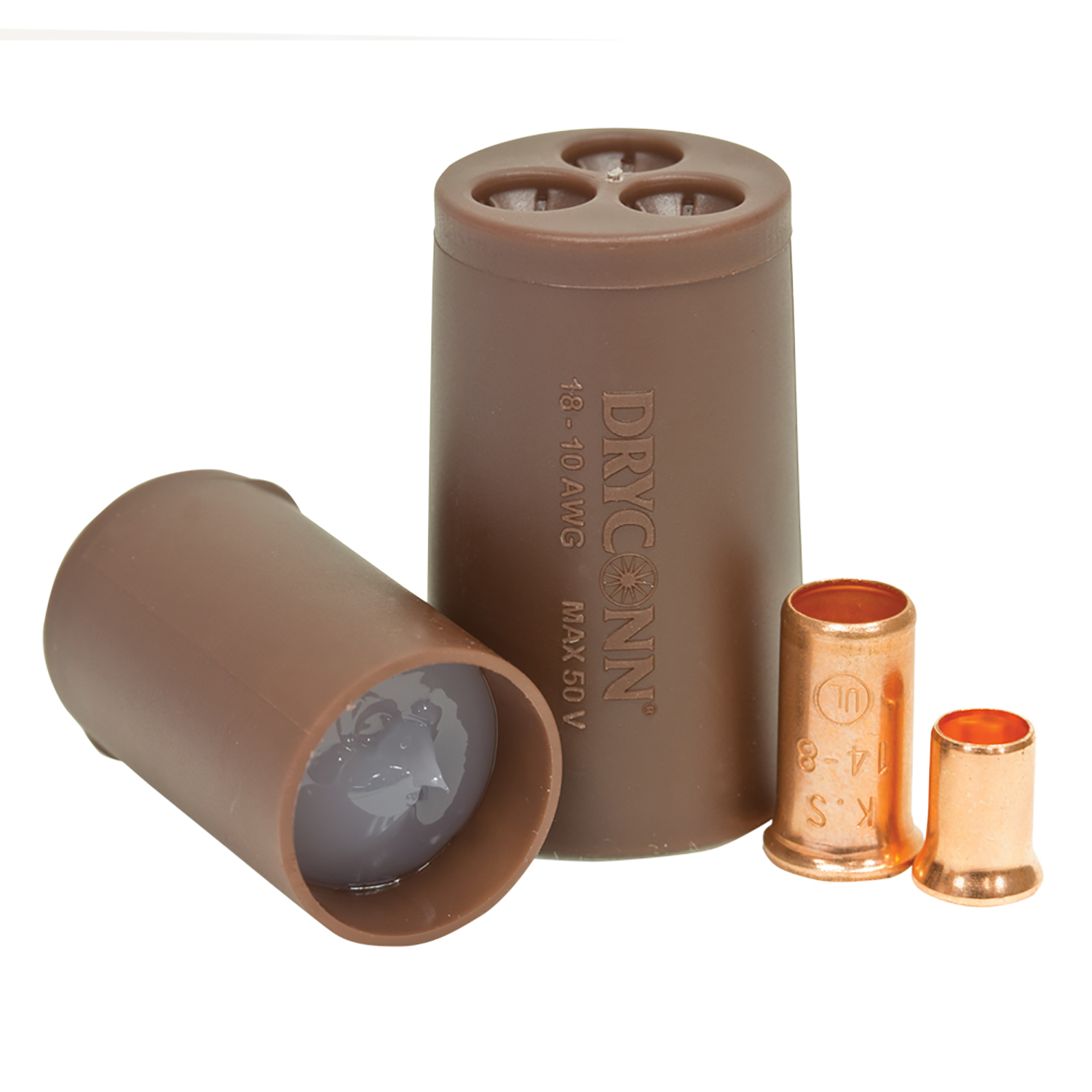

- Copper crimp with protective housing
- Two crimp sizes available to cover a wire range from #18 - #10 AWG
- Manufacturer approved for direct bury
- Allows installer to test connection prior to waterproofing splice
- For use in irrigation systems and low voltage lighting applications
- Max. Voltage: 50V
- Wire Type: Copper
- Wire Range: Min #18/Max #10
| RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
| Each in Package Height (in) * | 1 |
| Each in Package Width (in) * | 9.5 |
| Each in Package Length/Depth (in) * | 7 |
| Each in Package Weight (lbs) * | 0.799 |
| Inner Pack Weight (lbs) * | 6.4 |
