AlumiConn 3 Port Aluminum to Copper Lug
Part # 95145
AlumiConn 3-Port Al/Cu Wire Connectors - King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission More...

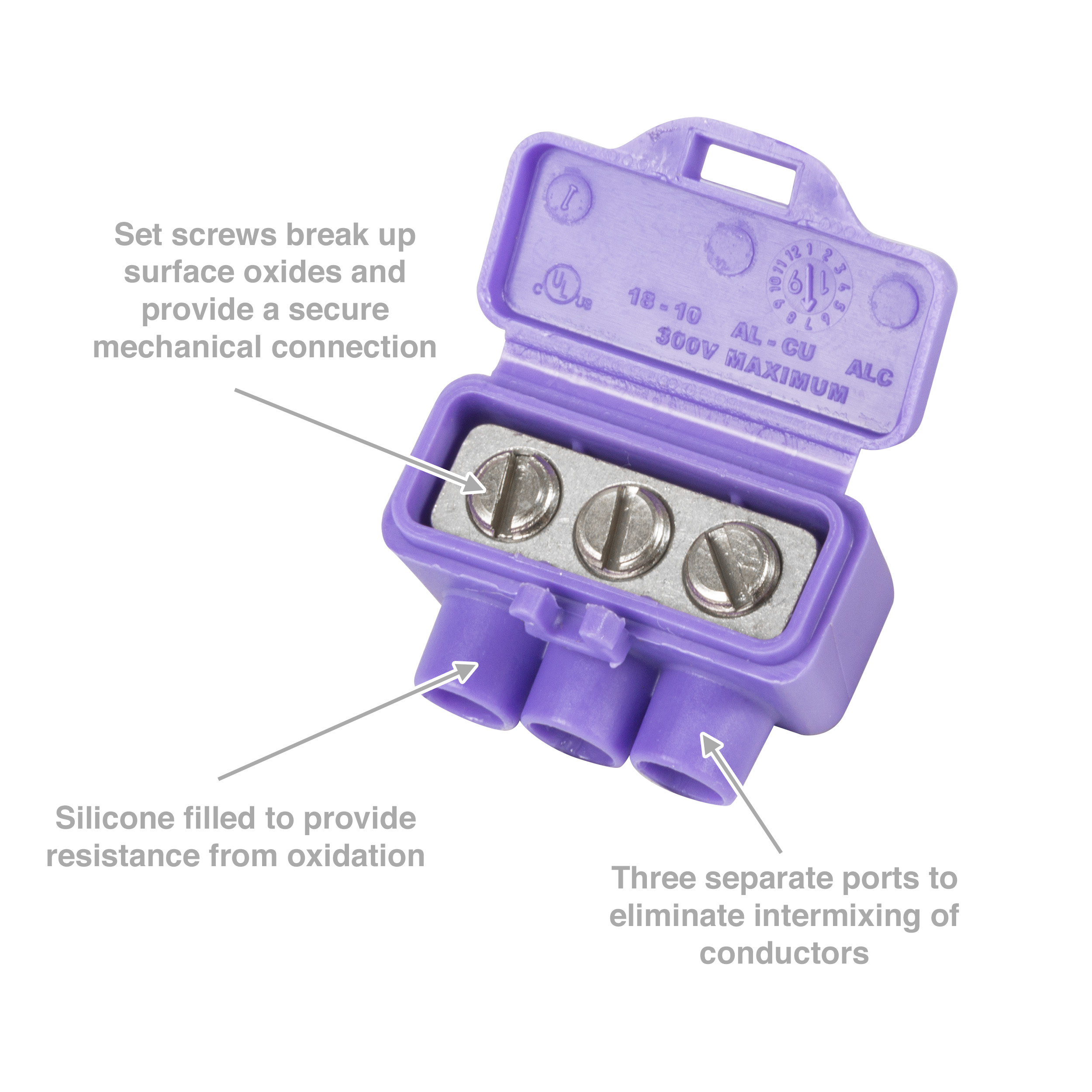

WHERE TO BUYAlumiConn 3-Port Al/Cu Wire Connectors - King Innovation’s AlumiConn Aluminum to Copper Lug is approved by the Consumer Product Safety Commission (CPSC), UL, and numerous insurance companies as a safe method for aluminum wiring repair. AlumiConn is a lug style connector with three separate ports to eliminate intermixing of conductors. It coats aluminum wires with a thin layer of silicone sealant to provide resistance from oxidation, and uses set screws to break up surface oxides and provide a secure mechanical connection. Avoid a complete re-wire by using AlumiConn, the most cost-effective aluminum wiring repair solution available.
- Approved by the Consumer Products Safety Commission (CPSC) and insurance companies
- Secure, mechanical connection of conductors
- Runs approximately 25 degrees Fahrenheit cooler than purple twist-ons
- Provides a safer connection
- Separate ports eliminate intermixing of conductors
- One piece for easy installation
- Dielectric silicone inhibitor reduces corrosion of connection
RoHS Compliant (Restriction of Hazardous Substances Directive) ° | Contact Compliance |
Each in Package Height (in) * | 9 |
Each in Package Width (in) * | 12 |
Each in Package Length/Depth (in) * | 12 |
Each in Package Weight (lbs) * | 19.33 |
Inner Pack Weight (lbs) * | 19.33 |
